SIA-GAN: Scrambling Inversion Attack Using Generative Adversarial Network

Koki Madono · Masayuki Tanaka · Masaki Onishi · Tetsuji Ogawa — Waseda University · AIST · Tokyo Institute of Technology

IEEE Access, vol. 9, pp. 129385–129393, 2021 (open access) · doi:10.1109/ACCESS.2021.3112684

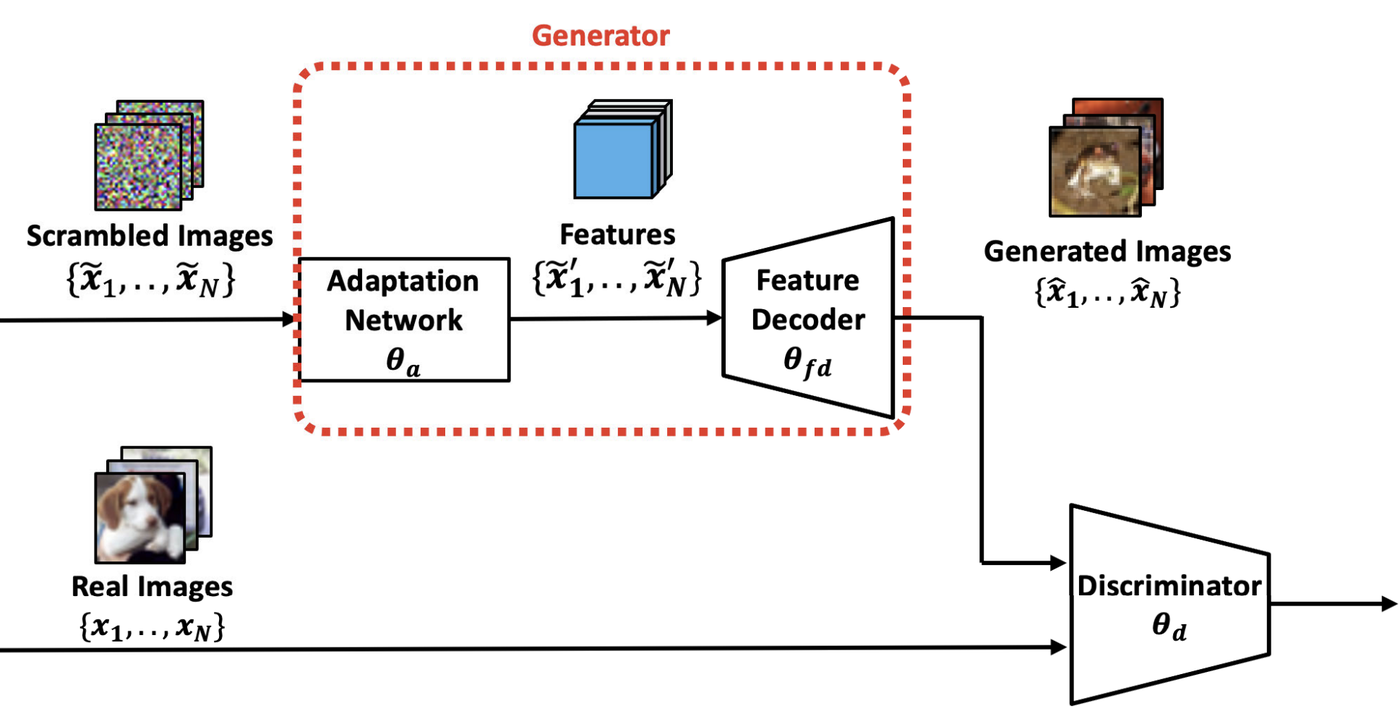

SIA-GAN: a generator made of an adaptation network and a feature decoder turns scrambled images into images that a discriminator compares with real images — **SIA-GAN (Fig. 3 of the paper).** The generator is the adaptation network of our block-wise recognition work followed by a feature decoder. It is trained adversarially against real images, which the attacker can crawl using the class labels, to invert the scrambling.

Abstract

This paper presents a scrambling inversion attack using a generative adversarial network (SIA-GAN). This method aims to evaluate the privacy protection level achieved by image scrambling method. For privacy-preserving machine learning, scrambled images are often used to protect visual information, assuming that searching the scramble parameters is highly difficult for an attacker due to the application of complex image scrambling operations. However, the security of such methods has not been thoroughly investigated. SIA-GAN learns the mapping between pairs of scrambled images and original images, then attempts to invert image scrambling. Therefore, the attacker is assumed to have real images whose domain is the same as that of scrambled images. Experimental results demonstrate that scrambled images cannot be recovered if block shuffling is applied as a scrambling operation. The experimental code of SIA-GAN is available at https://github.com/MADONOKOUKI/SIA-GAN.

Threat model and attack

What the attacker has. Scrambled training or test images intercepted on their way to the cloud, the block size (it is visible in the adaptation network) and the class labels. With the labels, the attacker collects real images of the same classes. These come either from the same dataset as the victim's (CIFAR-10) or from a different one (CIFAR-100).
SIA-GAN. The generator consists of block-wise sub-networks (one per block, re-assembled with a pixel-shuffle layer) and a feature decoder with spectral normalisation. The discriminator also uses spectral normalisation. Generator and discriminator are trained jointly with the hinge adversarial loss, then the generator maps a stolen scrambled image back to image space.

Main result

Five scramblers were attacked, with and without the adaptation network in the generator and with same-domain or different-domain real images. Without block shuffling (PE, random PE, LE) the attack recovers the structure of the original images. With block shuffling (ELE, EtC) the generated images look natural but do not reveal the original content. Block shuffling is therefore what protects scrambled images, at some cost in classification accuracy.

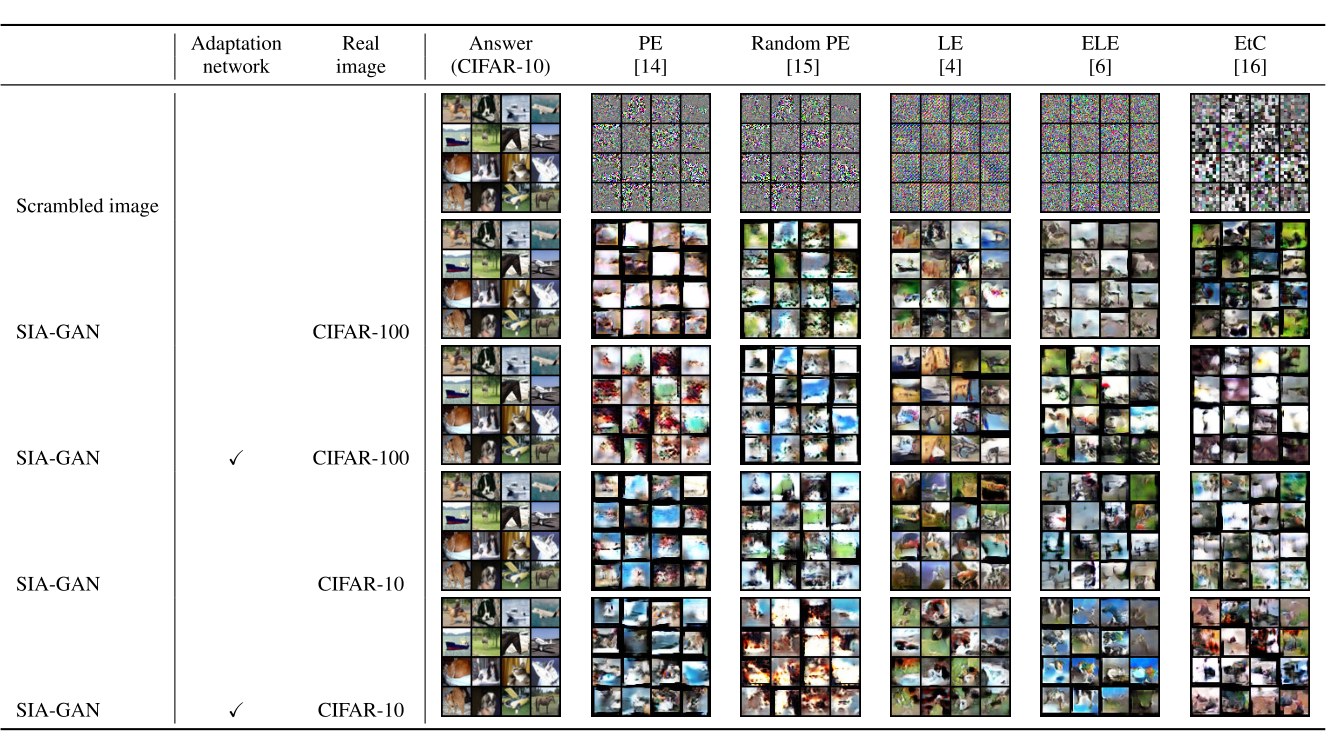

Grid of CIFAR-10 images, their scrambled versions under PE, random PE, LE, ELE and EtC, and the SIA-GAN reconstructions in four attack settings — Images generated by SIA-GAN from scrambled images (Table 2 of the paper). The Answer column is the original; rows vary the adaptation network and the real-image set.

Input	Adaptation	Real images	PE	Random PE	LE	ELE	EtC
Scrambled image			0.3255	0.3231	0.3035	0.2947	0.2074
SIA-GAN output		different (CIFAR-100)	0.1845	0.1954	0.1069	0.1589	0.2628
SIA-GAN output	✓	different (CIFAR-100)	0.1632	0.1960	0.1565	0.1483	0.2116
SIA-GAN output		same (CIFAR-10)	0.1964	0.1509	0.1451	0.1897	0.2067
SIA-GAN output	✓	same (CIFAR-10)	0.1719	0.1559	0.0914	0.1512	0.2090

LPIPS between the original CIFAR-10 image and the scrambled image (first row) or the image generated by SIA-GAN (other rows); values from Table 3 of the paper. PE: pixel-based encryption; LE: learnable encryption; ELE: extended learnable encryption; EtC: encryption-then-compression.

Use it

The attack is a pip-installable package in the paper repository, which also reproduces Table 3 with attack.py.

pip install git+https://github.com/MADONOKOUKI/SIA-GAN

import torch, siagan

le = siagan.LE()                              # learnable encryption with the key of the paper's experiments
x_scr = le(torch.rand(8, 3, 32, 32))          # what the attacker intercepts (siagan.PE / RandomPE / ELE / EtC too)
attack = siagan.SIAGAN(num_classes=10)        # adaptation network + feature decoder vs. discriminator
attack.fit(train_loader, le, epochs=100)      # train_loader: (image, label) batches, e.g. CIFAR-10
print(attack.evaluate(test_loader, le))       # PSNR / SSIM / LPIPS of the scrambled and the recovered images

git clone --depth 1 https://github.com/MADONOKOUKI/SIA-GAN
cd SIA-GAN && pip install -e .
python attack.py --scheme le --real-dataset cifar100   # one cell of Table 3 (LE, real images from CIFAR-100)

train_loader and test_loader are your data loaders; scripts/reproduce_table3.sh lists all 20 runs of Table 3, and --dataset fake runs a quick smoke test without downloading data.

Citation

@article{madono2021siagan,
  title   = {{SIA-GAN}: Scrambling Inversion Attack Using Generative Adversarial Network},
  author  = {Madono, Koki and Tanaka, Masayuki and Onishi, Masaki and Ogawa, Tetsuji},
  journal = {IEEE Access},
  volume  = {9},
  pages   = {129385--129393},
  year    = {2021},
  doi     = {10.1109/ACCESS.2021.3112684}
}

Related work in this series

The paper is open access under the Creative Commons Attribution 4.0 licence (IEEE Access); the figures above are reproduced from it.
